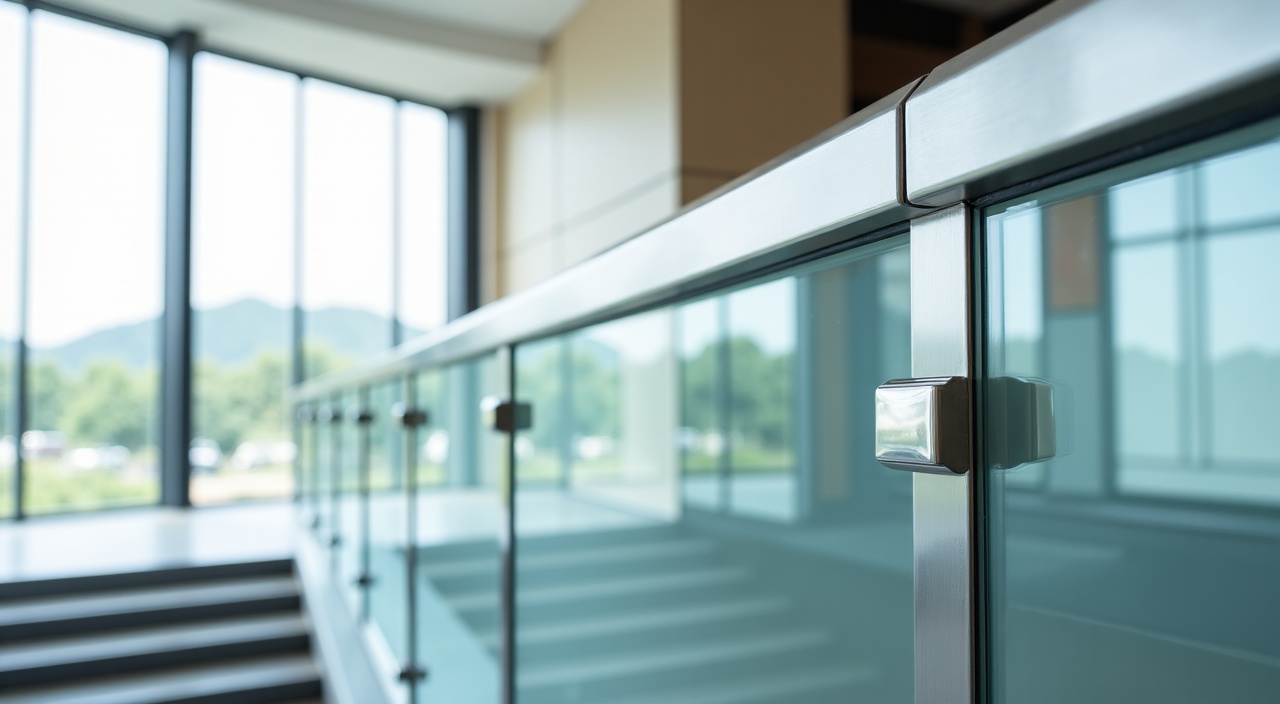

Structural Glass Railings
SGP laminated glass balustrades engineered for balconies, staircases, and commercial atriums — U-channel base systems, standoff pin mounting, and post-break structural integrity proven at 20,000 sq ft scale at Toppen Shopping Centre.
The Most Liability-Critical Glass Installation in a Building
A structural glass railing is architecturally transformative — it removes visual barriers, makes spaces feel dramatically larger, and frames views without the visual noise of steel or timber balusters. It is also, without question, the most liability-critical glass installation in a building. A glass railing that fails while bearing a person's weight or during crowd loading at an edge drop is a catastrophic structural failure. This is not a product category where value engineering is appropriate. Glass specification, fixing system design, and installation precision all carry direct safety consequences.
JWE engineered and installed over 20,000 sq ft of glass railing at Toppen Shopping Centre — one of the largest single-project glass railing installations in Malaysia — along with 8,000 sq ft of smart mirror wall in the same project. Our glass railing systems use SGP (SentryGlas Plus) laminated glass — not PVB laminate, which loses structural stiffness when the outer glass layer breaks. SGP interlayer maintains the panel's structural rigidity even after glass breakage, providing the critical post-break safety period for evacuation. U-channel base systems are cast into the concrete slab with structural resin, and standoff pin systems for staircase applications are through-bolted into the concrete stringer — not surface-fixed.
SGP Laminated Glass
SentryGlas Plus interlayer maintains structural rigidity after the outer glass layer breaks — unlike PVB laminate, which sags and loses load capacity. Post-break structural integrity is the defining safety advantage of SGP over standard laminated glass in railing applications.
Deep U-Channel Base System
Heavy-duty aluminium or steel U-channels cast into the concrete slab with structural resin. The glass panel is set into the channel and shimmed for plumb — the channel transfers all lateral loading to the slab, not to surface fixings that can pull out under repeated loading.
Through-Bolt Standoff Pins
For staircase balustrades, machined stainless steel standoff pins are through-bolted into the concrete stringer — not surface-fixed with chemical anchors alone. Through-bolting provides structural reliability that surface-fixing into concrete slab edges cannot.
Landmark Reference
Toppen Shopping Centre — 20,000 sq ft
JWE completed over 20,000 sq ft of glass railing at Toppen Shopping Centre, Johor Bahru — one of the largest single-project glass railing installations in Malaysia. The project also included 8,000 sq ft of smart mirror wall in the same scope.
Get a Railing Quote
Share your railing run length, drop height, application (balcony, staircase, atrium), and whether the slab is existing or under construction. We design the system and provide full documentation with the quotation.
Request a QuoteOr call 012-9820888
Quick Specifications
Frequently Asked Questions
Why is SGP laminate better than standard PVB for glass railings?
When the outer glass layer of a PVB laminate panel breaks, the PVB interlayer loses much of its structural stiffness and the panel sags under its own weight, providing little resistance to a person leaning against it. SGP (SentryGlas Plus) interlayer is significantly stiffer and maintains the panel's structural rigidity even after glass breakage, providing a critical window for evacuation before the panel is replaced. For any railing application where a broken panel would present an immediate fall hazard, SGP is the correct specification.
Can glass railings be installed on an existing balcony slab?
Yes, but the slab edge condition must be assessed before committing to a system. U-channel installation requires core drilling or chase cutting into the slab surface. Standoff pin installation requires through-bolting the slab or stringer — which requires assessing structural element thickness and rebar positions. We conduct a site assessment before designing the fixing system. For slabs where cutting is not possible, surface-fix base plate systems can be designed, though these require careful structural review of the bolt pull-out capacity.
Does a glass railing require a handrail on top?
UBBL requirements specify a minimum height of 1,050mm for balconies and 900mm for stairs, measured to the top of the handrail or glass panel. A full-height glass panel that reaches the required height does not require a separate handrail on top. Where a capping channel or stainless top rail is used for aesthetic or structural reasons, it is incorporated into the total height calculation. We design to UBBL requirements and advise on the most appropriate configuration for your application.
